Kubernetes capacity planning: How to rightsize the requests of your cluster

Kubernetes capacity planning is one of the main challenges that infrastructure engineers have to face, as understanding Kubernetes limits and requests is not an easy thing.

You might be reserving way more resources than you need to ensure your containers don’t run out of memory, or are CPU throttled. If you are in this situation, you’re going to be charged for those resources even if they aren’t being used, and it will also make deployments more difficult to schedule. That’s why Kubernetes capacity planning is always a balance between the stability and reliability of the cluster, and the correct use of the resources.

In this article, you’ll learn how to identify unused resources and how to rightsize the capacity of your cluster.

Don’t be a greedy developer

There are situations where a container requests more resources than it needs. If it’s just a container, it may not have a critical impact on the invoice from your cloud provider. But if this happens in all the containers, you’ll have several extra costs in your invoices in a large cluster.

Not to mention that if pods are too big, you may spend extra effort debugging scheduling issues. After all, it’s harder for Kubernetes to schedule bigger Pods following your priorities.

Two open-source tools will help you with Kubernetes capacity planning:

  • kube-state-metrics: An add-on agent to generate and expose cluster-level metrics.
  • CAdvisor: A resource usage analyzer for containers.

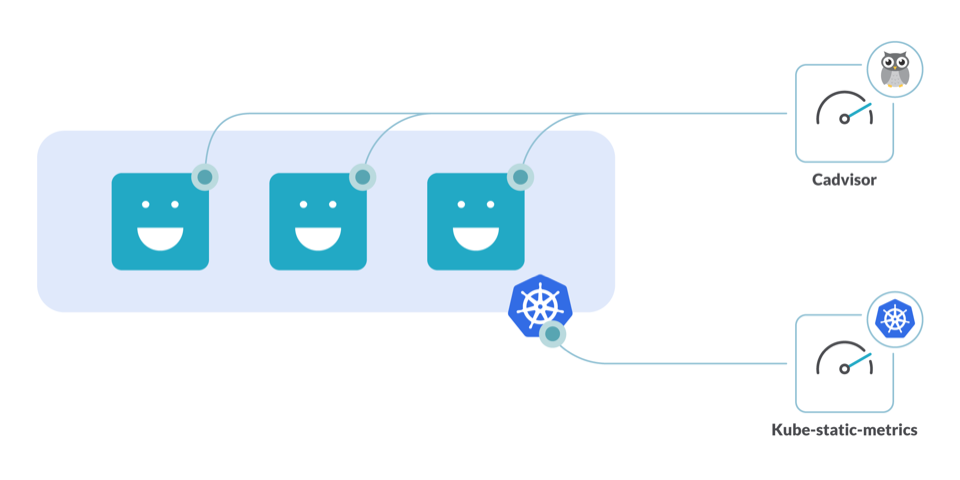

Diagram showing some containers being analyzed by Kube-state-metrics and CAdvisor

With these tools running in your cluster, you’ll be able to avoid resource underuse and rightsize the requests for your cluster.

How to detect underutilized resources

CPU

Computing capacity is one of the most delicate knobs to tweak since it’s easy to throttle your node by setting the requests too low. On the other side, trying to solve this by requesting too many cores will end up on a mostly idle cluster node.

Diagram showing some containers linked to a CPU with an arrow. Each container has a percentage of CPU use in one side (2%, 25%...). The ones using a low percentage of the CPU have a warning sign. In the bottom of the diagram you can see a simple formula we used to calculate the underuse of CPU resources: (Container CPU available - Container CPU usage) / Container CPU available = % of CPU cores underutilized.

Detecting idle cores

Using the information given by container_cpu_usage_seconds_total and kube_pod_container_resource_requests, you can detect how many CPU cores are underutilized.

sum((rate(container_cpu_usage_seconds_total{container!="POD",container!=""}[30m]) - on (namespace,pod,container) group_left avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="cpu"})) * -1 >0)

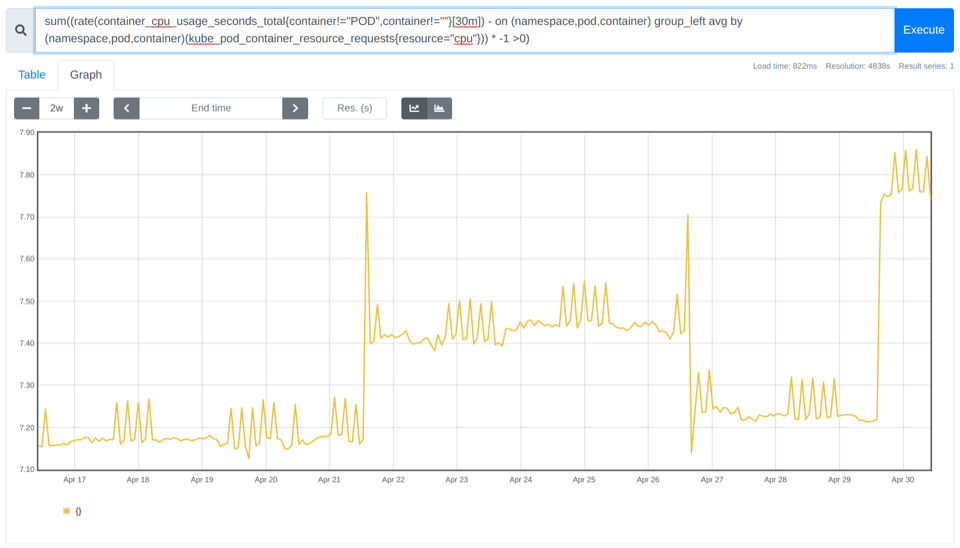

Screenshot of a Prometheus chart showing the result of the PromQL query we used for detecting idle cores.

In the example above, you can see there are between ~7.10 and ~7.85 cores not being used.

How to identify which namespaces are wasting more CPU cores

By summing the previous PromQL query by namespace, you can get a more fine-grained picture. And, the good news is that it enables you to charge-back the departments responsible for the over-sized namespaces.

sum by (namespace)((rate(container_cpu_usage_seconds_total{container!="POD",container!=""}[30m]) - on (namespace,pod,container) group_left avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="cpu"})) * -1 >0)

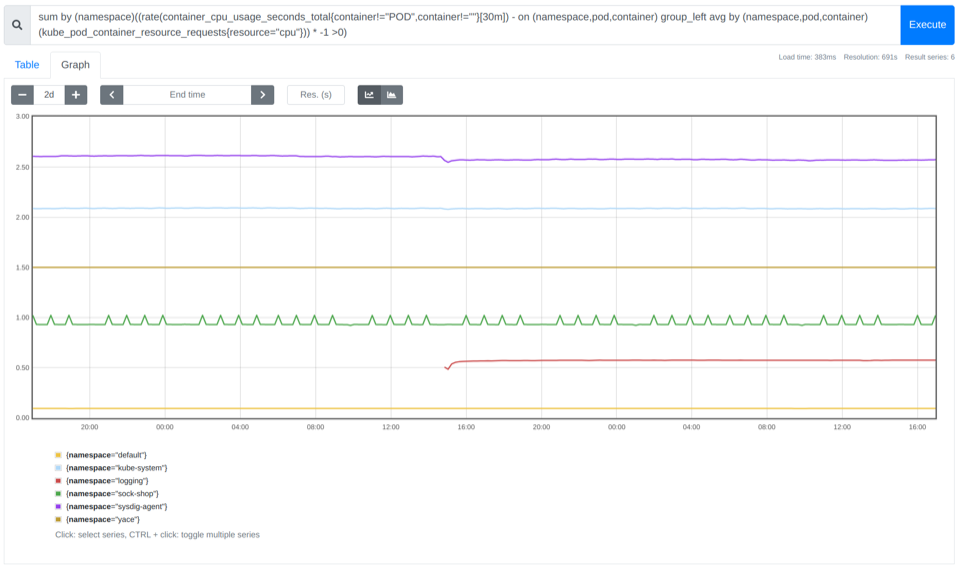

Screenshot of a Prometheus chart showing the result of the PromQL query we used for identifying which namespaces are wasting more CPU resources.

Finding the top 10 containers that are CPU oversized

As we covered in our PromQL getting started guide, you can use the topk function to easily get the top n results for a PromQL query. Just like this:

topk(10,sum by (namespace,pod,container)((rate(container_cpu_usage_seconds_total{container!="POD",container!=""}[30m]) - on (namespace,pod,container) group_left avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="cpu"})) * -1 >0))

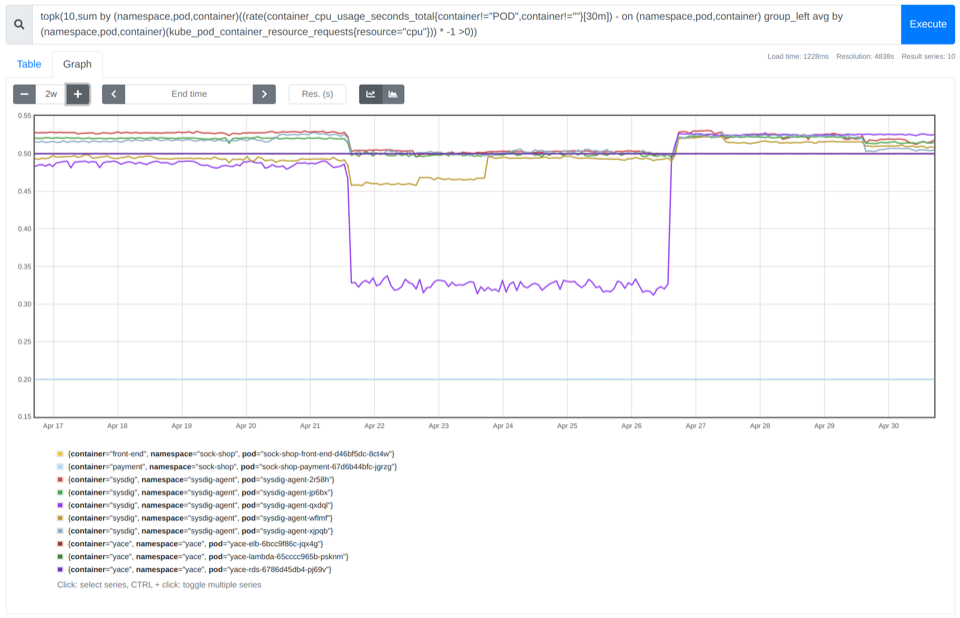

Screenshot of a Prometheus chart showing the result of the PromQL query we used for finding the top 10 containers that are CPU oversized.

Memory

It’s critical to do memory planning correctly. If you don’t request enough memory, the node will start to evict pods when it runs out of memory. But memory is also finite, so the better you tune this setting, the more deployments will fit each node. Learn more about Out of memory errors.

Diagram showing some containers linked to a ram memory module with an arrow. Each container has a percentage of memory use in one side (2%, 25%...). The ones using a low percentage of memory have a warning sign. In the bottom of the diagram you can see a simple formula we used to calculate the underuse of memory resources: (Container memory available - Container memory usage) / Container memory available = total of memory underutilized.

Detecting unused memory

You can use the information from container_memory_usage_bytes and kube_pod_container_resource_requests to see how much memory you are wasting.

sum((container_memory_usage_bytes{container!="POD",container!=""} - on (namespace,pod,container) avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="memory"})) * -1 >0 ) / (1024*1024*1024)

Screenshot of a Prometheus chart showing the result of the PromQL query we used for detecting unused memory

In the example above, you can see that you could save 0.8 Gb cost for that cluster.

How to identify which namespaces are wasting more memory

We can aggregate by namespace, just as we did with the CPU.

sum by (namespace)((container_memory_usage_bytes{container!="POD",container!=""} - on (namespace,pod,container) avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="memory"})) * -1 >0 ) / (1024*1024*1024)

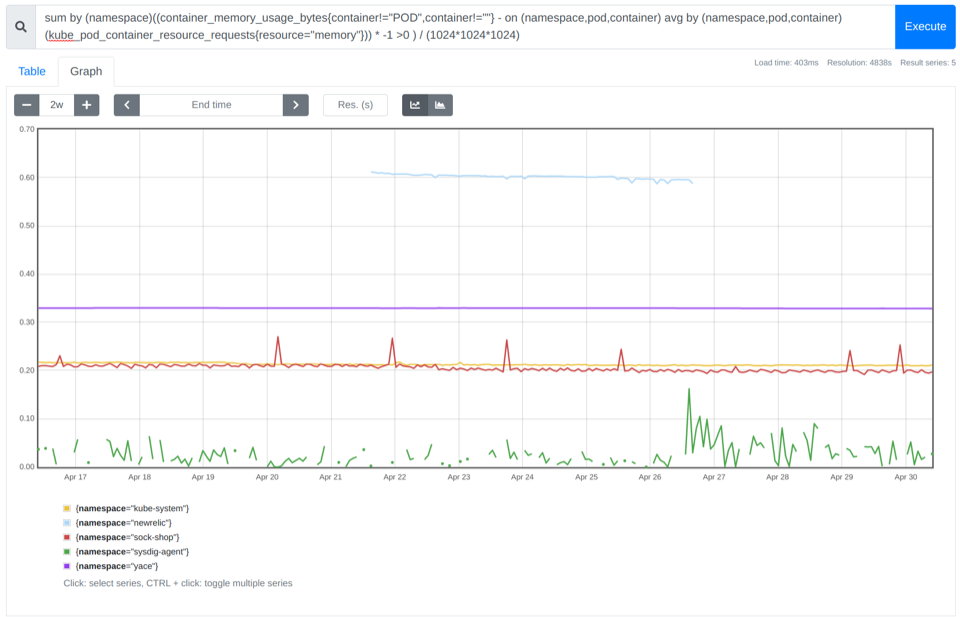

Screenshot of a Prometheus chart showing the result of the PromQL query we used for identify which namespaces are wasting more memory.

Finding the top 10 containers that are memory oversized

Again, using the topk function, we can identify the top 10 containers that waste more memory inside of each namespace.

topk(10,sum by (namespace,pod,container)((container_memory_usage_bytes{container!="POD",container!=""} - on (namespace,pod,container) avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="memory"})) * -1 >0 ) / (1024*1024*1024))

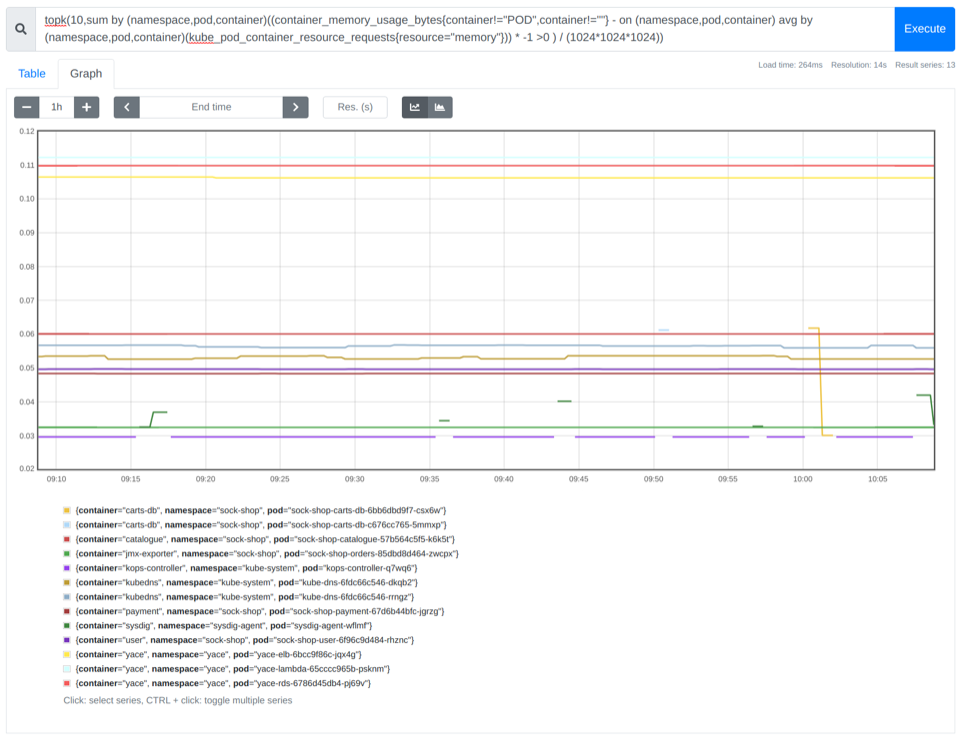

Screenshot of a Prometheus chart showing the result of the PromQL query we used to find the top 10 containers that are memory oversized

How to rightsize the requests of your containers

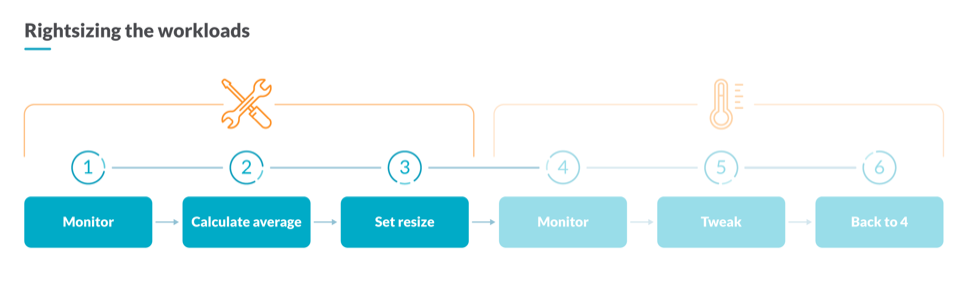

Diagram showing the three main steps you should follow to rightsize the requests of your containers: 1. Monitor 2. Calculate average 3. Set resizes.

In Kubernetes capacity planning, to reserve the correct amount of computational resources, you need to analyze the current resource usage of your containers. For that, you could use this PromQL Query that calculates the average CPU utilization for all the containers belonging to the same workload. Understanding a workload as a Deployment, a StatefulSet, or a DaemonSet.

avg by (namespace,owner_name,container)((rate(container_cpu_usage_seconds_total{container!="POD",container!=""}[5m])) * on(namespace,pod) group_left(owner_name) avg by (namespace,pod,owner_name)(kube_pod_owner{owner_kind=~"DaemonSet|StatefulSet|Deployment"}))

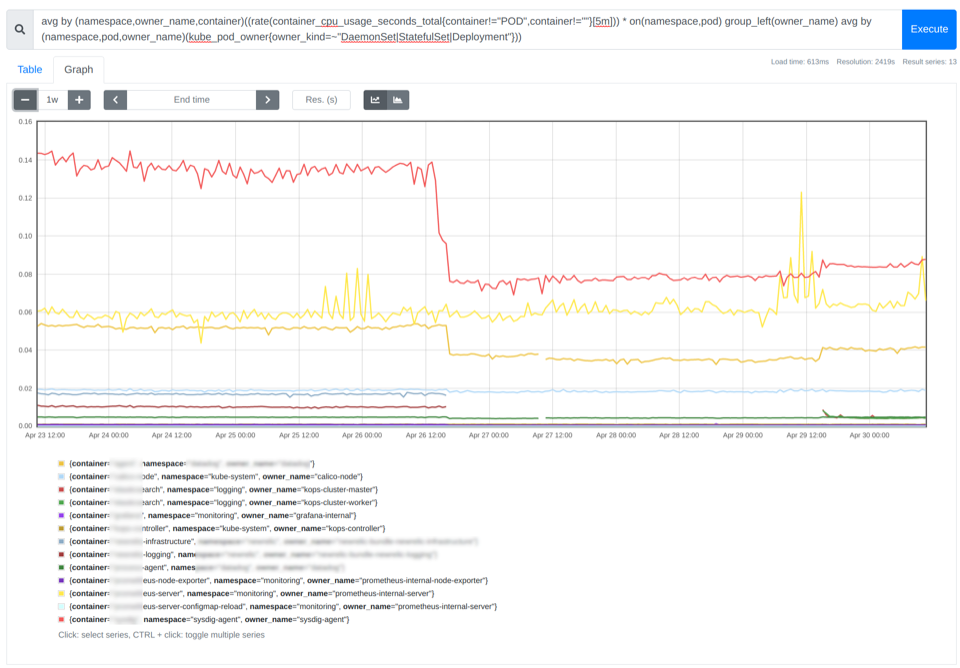

Screenshot of a Prometheus chart showing the result of the PromQL query we used for calculate the average CPU utilization for each container. This value will help you determine what CPU requests you should set.

In the image above, you can see the average CPU utilization for each container. As a rule of thumb, you can set the request of the containers with a value between 85% and 115% of the average usage of CPU or memory.

How to measure the impact of your optimizations

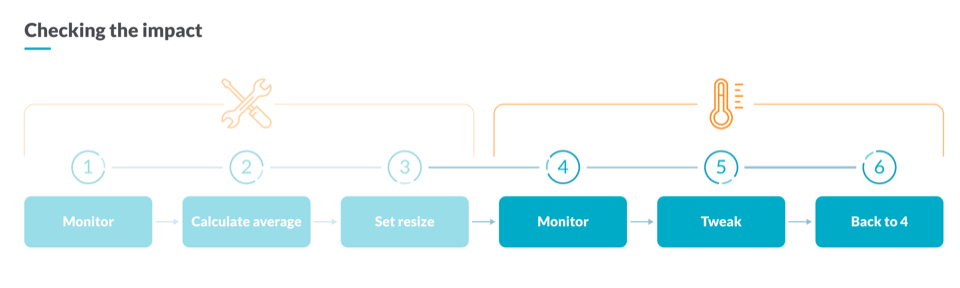

Diagram showing the three main steps you should follow to check the requests optimization you did. It's a continuation for the three previous steps we used for rightsizing: 4. Monitor 5. Tweak 6. Back to 4 (if needed).

After performing some Kubernetes capacity planning operations, you’ll need to check the impact of the changes on your infrastructure. For that, you can compare the underutilized CPU cores now against the values from one week before to assess the impact of your optimizations.

sum((rate(container_cpu_usage_seconds_total{container!="POD",container!=""}[30m]) - on (namespace,pod,container) group_left avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="cpu"})) * -1 >0) - sum((rate(container_cpu_usage_seconds_total{container!="POD",container!=""}[30m] offset 1w) - on (namespace,pod,container) group_left avg by (namespace,pod,container)(kube_pod_container_resource_requests{resource="cpu"} offset 1w )) * -1 >0)

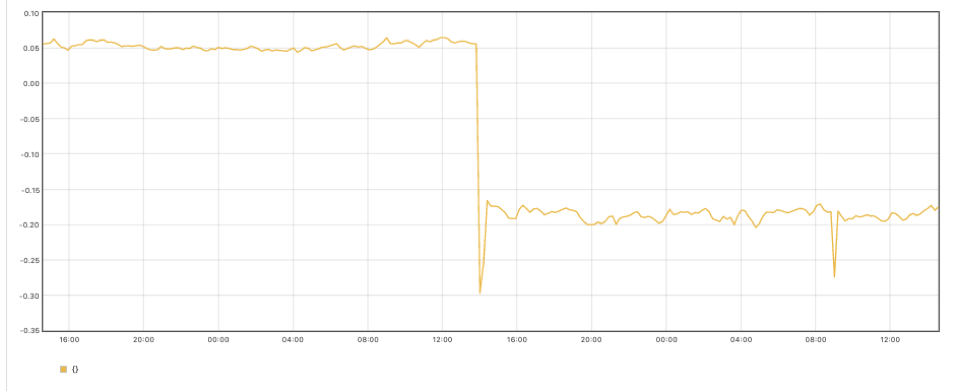

Screenshot of a Prometheus chart showing the result of the PromQL query we used to check the CPU utilization after we tweaked the CPU requests.

In the above graph, you can see that after applying the previous optimizations, we now have fewer unused cores in our cluster.

Putting it all together

Now you know the consequences of the greedy developer problem and how to detect the over-allocation of platform resources. Additionally, you learned how to rightsize the requests of your containers and how to measure the impact of your optimizations.

These tips should be a good starting point to build a comprehensive Kubernetes capacity planning dashboard, and obtain a single pane of glass with all the information needed to optimize your platform resources.

Now that you already configured your Kubernetes resource requests in your cluster, you can dig deeper on how to set the right Kubernetes resource limits!
