Tracing in Kubernetes: kubectl capture plugin.

We are really happy to announce that we have released a plugin which allows to take captures using Sysdig in your Kubernetes cluster with just one simple command. And the answer for the next question you are asking yourself, is no. You don’t need to have Sysdig preinstalled in your cluster for this to work! This is our contribution to help you with your Kubernetes troubleshooting efforts.

Once you have the capture file with a ton of data about your containers and its behavior you will use Sysdig Inspect to debug or doing some kind of performance analysis or even a forensic analysis to fill out a post mortem report and improve you learning and knowledge about how your microservices are behaving.

Installing the kubectl plugin

Before installing, make sure you can use this plugin. Check that you are using a modern kubectl version (1.12.0 or greater). Although plugins were officially introduced as an alpha feature in the v1.8.0 release, the kubernetes folks recommends a 1.12.0 or later version for using plugins.

    Once you check all prerequisites, the next step is installing the plugin, so you will need to get the repository from GitHub or just the plugin file and place it in your PATH, in this example I’m going to put it under /usr/local/bin.

    $ git clone https://github.com/sysdiglabs/kubectl-capture.git
    $ cd kubectl-capture
    $ sudo cp kubectl-capture /usr/local/bin

    Or directly using wget:

    $ sudo wget https://raw.githubusercontent.com/sysdiglabs/kubectl-capture/master/kubectl-capture -O /usr/local/bin/kubectl-capture
    $ sudo chmod +x /usr/local/bin/kubectl-capture

    Once, the file is in your PATH you can check the installation with the following command:

    $ kubectl plugin list
    The following kubectl-compatible plugins are available:

    /usr/local/bin/kubectl-capture

    Hooray, our kubectl plugin is ready.

    Troubleshooting a containerized application

    As we stated before, troubleshooting a Kubernetes CrashLoopBackOff is one of the most annoying things you can find in a Kubernetes cluster. It’s happened to all of us at least once and as we have no access to troubleshooting tools inside the container, it becomes a real nightmare.

    Something similar happens with other application errors where we don’t have access to troubleshooting tools inside the container. We have the following application deployed in our Kubernetes cluster:

    $ kubectl get pod -n ticket-generator
    NAME                           	READY   STATUS	RESTARTS   AGE
    ticket-balancer-5967c66fb4-qnzj6    1/1 	Running   0      	6m
    ticket-client-68df494585-ntqls 	1/1 	Running   0      	6m
    ticket-server-56c75bf88b-nqpcs 	1/1 	Running   0      	6m
    ticket-server-56c75bf88b-wjsw2 	1/1 	Running   0      	6m

    And since our last deployment, as we are monitoring the application, we start noticing about several 502 HTTP errors which are causing problems to our customers.

    We start digging a bit and we can confirm the 502 errors looking into some logs:

    $ kubectl logs -n ticket-generator ticket-client-68df494585-ntqls
    ...
    100   107	0   107	0 	0   7642  	0 --:--:-- --:--:-- --:--:--  7642
    % Total	% Received % Xferd  Average Speed   Time	Time 	Time  Current
    Dload  Upload   Total   Spent	Left  Speed
    <html><body><h1>502 Bad Gateway</h1>
    The server returned an invalid or incomplete response.
    </body></html>

    So yes, the 502 error is there, we are going to dig a bit deeper checking the logs of the balancer:

    $ kubectl logs -n ticket-generator ticket-balancer-5967c66fb4-qnzj6

    Great, we don’t have logs from the load balancer. This makes our troubleshooting harder. Let’s go deeper:

    $ kubectl logs -n ticket-generator ticket-server-56c75bf88b-wjsw2
    ...
    10.40.1.6 - - [14/Feb/2019 11:05:29] "GET /getticket HTTP/1.1" 200 -
    10.40.1.6 - - [14/Feb/2019 11:05:32] "GET /getticket HTTP/1.1" 200 -

    Umm, this is strange, we are receiving 200 from the application. What’s happening under the hood, inside the load balancer?

    The situation is partially under control, we can rollback the deployment and go to a previous version but just looking at the logs don’t have enough data to determine the root cause. We need to address the most important question: Why is this deployment failing? Because of the 502 errors. But why are these errors happening?

    Start to capture data with the kubectl plugin

    We need to dig deeper for a better understanding of the application and to put some light in the dark world of the load balancer. Let’s do that:

    $ kubectl capture ticket-balancer-5967c66fb4-qnzj6 -ns ticket-generator -M 30 --snaplen 256
    Sysdig is starting to capture system calls:

    Node: gke-sysdig-work-default-pool-0ed2e258-xtwv
    Pod: ticket-balancer-5967c66fb4-qnzj6
    Duration: 30 seconds
    Parameters for Sysdig: -S -M 30 -pk -z -w /capture-ticket-balancer-5967c66fb4-qnzj6-1550246858.scap.gz  --snaplen 256

    The capture has been downloaded to your hard disk at:
    ~/captures/capture-ticket-balancer-5967c66fb4-qnzj6-1550246858.scap.gz

    With just one simple command we have started to capture all activity related to the load balancer, so now it’s time to troubleshoot with Sysdig Inspect.

    Capturing system calls using eBPF probe instead of kernel module

    As some of you already know, we can use eBPF as core instrumentation technology for capturing the system calls. Extended Berkeley Packet Filter (eBPF) is a modern and powerful technology used in the Linux kernel for a wide variety of applications, including networking and tracing.

    This is pretty useful in those systems which doesn’t allow to use the kernel module technology. A well known case is a GKE cluster which uses COS instead of Ubuntu image for the nodes. In order to enable eBPF we need a recent Linux kernel (4.14+) with eBPF support and let the plugin to do the rest of magic:

    $ kubectl capture ticket-balancer-5967c66fb4-qnzj6 -ns ticket-generator --ebpf -M 30 --snaplen 256
    Sysdig is starting to capture system calls:

    Node: gke-sysdig-work-default-pool-0ed2e258-xtwv
    Pod: ticket-balancer-5967c66fb4-qnzj6
    Duration: 30 seconds
    Parameters for Sysdig: -S -M 30 -pk -z -w /capture-ticket-balancer-5967c66fb4-qnzj6-1550246858.scap.gz  --snaplen 256

    The capture has been downloaded to your hard disk at:
    ~/captures/capture-ticket-balancer-5967c66fb4-qnzj6-1550246858.scap.gz

    And that’s all, with just the –ebpf flag the plugin uses the eBPF technology.

    Augmenting the amount of tracing data

    One interesting thing is the --snaplen 256 flag. The snaplen allows to capture the first bytes of each I/O buffer. By default only the 80 first bytes are captured but sometimes you are going to need more context in your captures. Use this with caution because it can generate huge trace files. But if you want to go one step further, the kubectl plugin accepts the same parameters that sysdig command line utility does, so you can use all the options available for the command line application, including filters, in this kubectl plugin.

    What did happen here?

    Under the hood, the kubectl plugin starts a new pod in the same host that the pod we specified in the command line, so that we can see everything that is happening right now in that host. Sysdig has also an awesome support to see what’s happening inside the containers, and we are going to take advantage of that feature.

    $ kubectl get pod --all-namespaces
    NAMESPACE      	NAME                                                     	READY   STATUS          	RESTARTS   AGE
    default        	capture-ticket-balancer-5967c66fb4-qnzj6-1550246858   1/1 	Running   0      	2m

    Notice that we specified a duration of 30 seconds of the capture and the pod is running more time than the 30 seconds. This is because the pod needs to build the Sysdig Kernel module and it takes some time until the capture starts.

    Using the capture to analyze with Sysdig Inspect

    Sysdig Inspect is an Open Source application which makes Sysdig shine. Is impressive how it organizes a huge amount of information about system calls, how it correlates activities and how simplifies the troubleshooting activity.

    Once the capture has finished, it drops the capture file to our local disk. So we can load the downloaded capture in Sysdig Inspect:

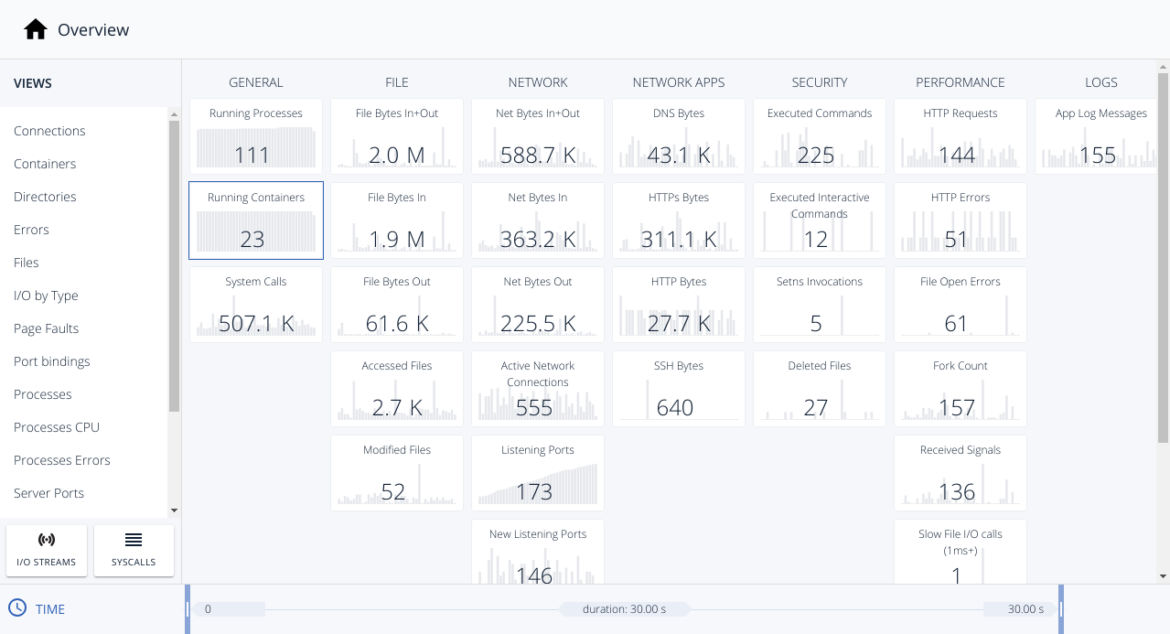

    Sysdig Inspect - Load Capture File from the kubectl plugin

    And we are going to filter by containers to reduce the scope to the load balancer.

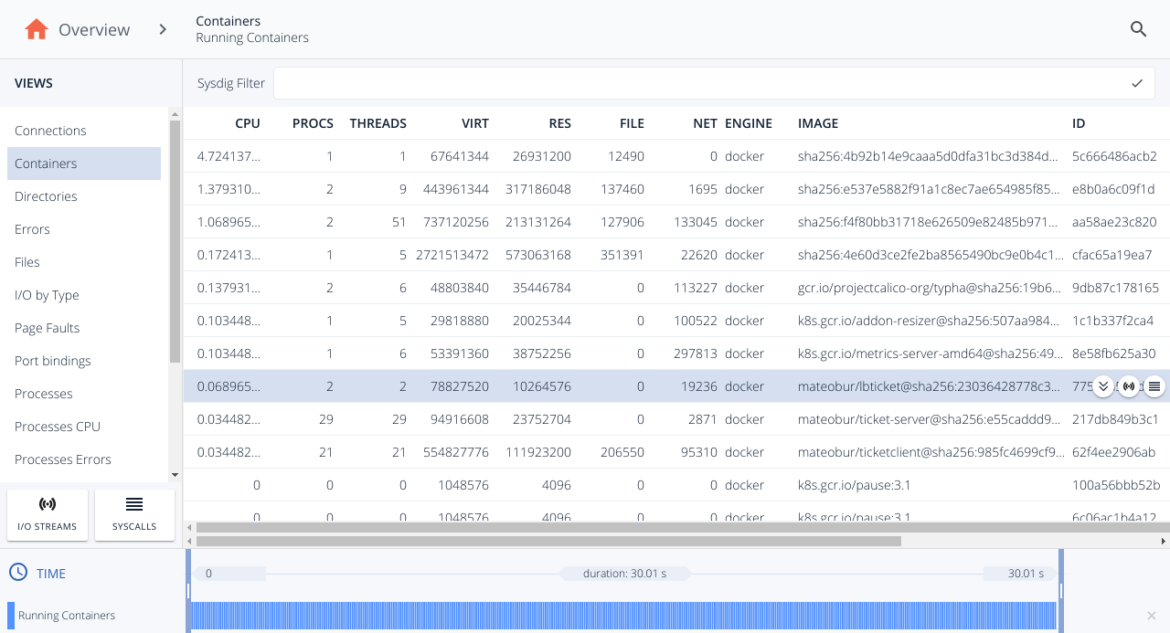

    Sysdig Inspect - Filter system calls by container

    And once, we selected the container, we open its I/O Streams and read the conversation using the “Printable ASCII”:

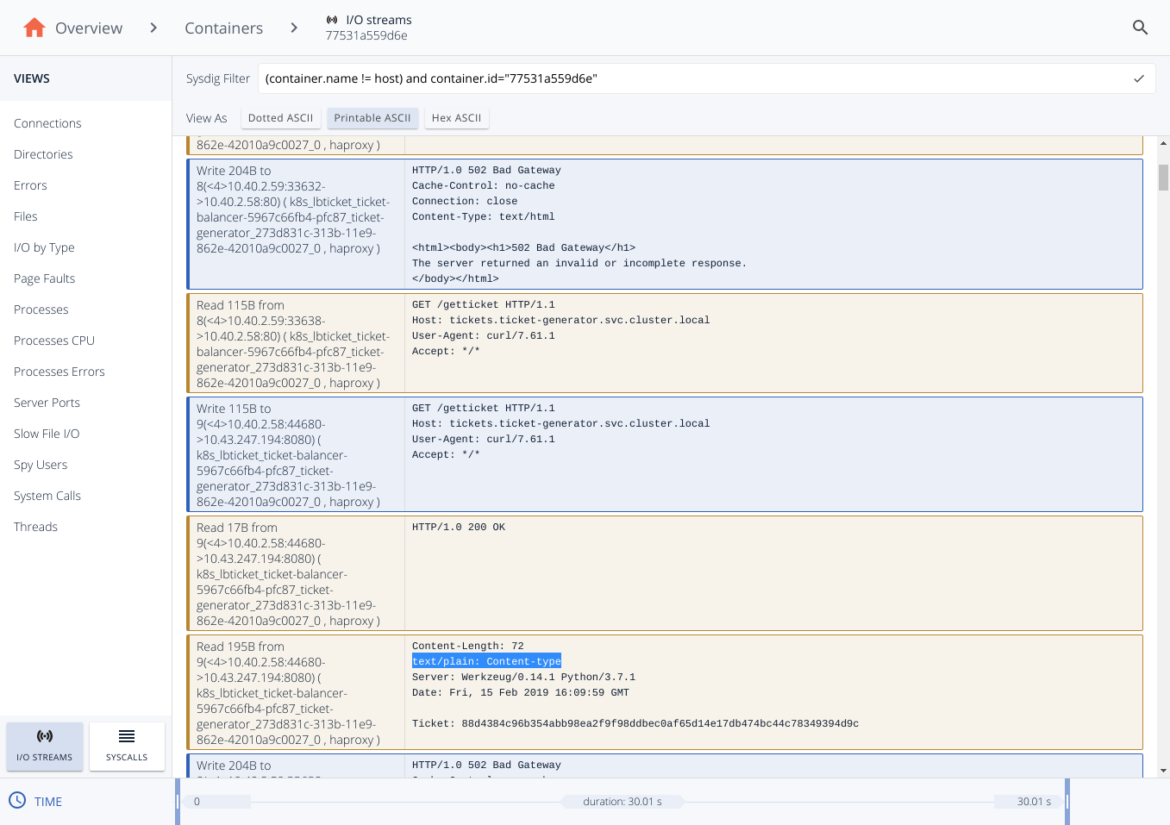

    Sysdig Inspect -HTTP conversation for debugging CrashLoopBackOff

    And now we can see the full HTTP conversation that the load balancer container have had with the backend servers, and there’s the clue about the 502 error. Let me explain.

    Blue rows mean that we are sending a message, a write syscall, while the orange one represent a received message (a read syscall). So we can reconstruct the complete conversation:

    • 1st row: The load balancer sends a 502 error.
    • 2nd row: The load balancer reads the request query to the backend.
    • 3nd row: The load balancer sends the request query to the backend.
    • 4nd, 5th row: The load balancer receives body response from the backend.

    Now, we can conclude that the root cause is the following:

    • The balancer receives the response from the backend servers. The body is correct but the headers have a format which is not valid. The text/plain: Content-type header should be instead Content-type: text/plain.
    • While this is ignored by some browsers (that’s why it worked in the developer’s laptop) and some HTTP proxies will be able to tolerate this invalid message, the HAproxy that we are using doesn’t tolerate this and returns a 502 HTTP error.
    • The client receives the 502 Bad Gateway HTTP error.

    Conclusions

    When you run into a problem in your application deployments, you need to understand really well what happened and needs to retrieve the root cause to apply a fix. You need a deep understanding of how the microservices are behaving and Sysdig can help you with this task.

    Captures create a full recording of every that happened on the system, and combining this with Sysdig Inspect, the Open Source GUI for troubleshooting analysis, you can perform an investigation correlating events and details to discover the root cause.

    The kubectl plugin can save you a lot of time and effort setting up the needed infrastructure to record the captures and download them to your local workstation for being analyzed with Sysdig Inspect. And is Open Source, so that contributors and feedback is really appreciated.
